UB-63801-B5 - STANDARD BEARING MEASURE (12 x 21 x 7 mm) B5 -- COD. ( 63801-2RS (single row) - 12 21 7 - 12217 - 12x21x7 )
(Tax included) Shipping calculated at checkout
Shipping within 2 days
Free Shipping on Orders Over €69,99
Secure Payment
Return within 14 days
UB-63801-B5 - STANDARD BEARING MEASURE (12 x 21 x 7 mm) B5 -- COD. ( 63801-2RS (single row) - 12 21 7 - 12217 - 12x21x7 )
Key strengths63801 reinforced thin section bearingDimensions 12 x 21 x 7 mm2RS seals for protection against dust and contaminantsThicker profile than 6801 series for improved strengthGood load capacity with compact design

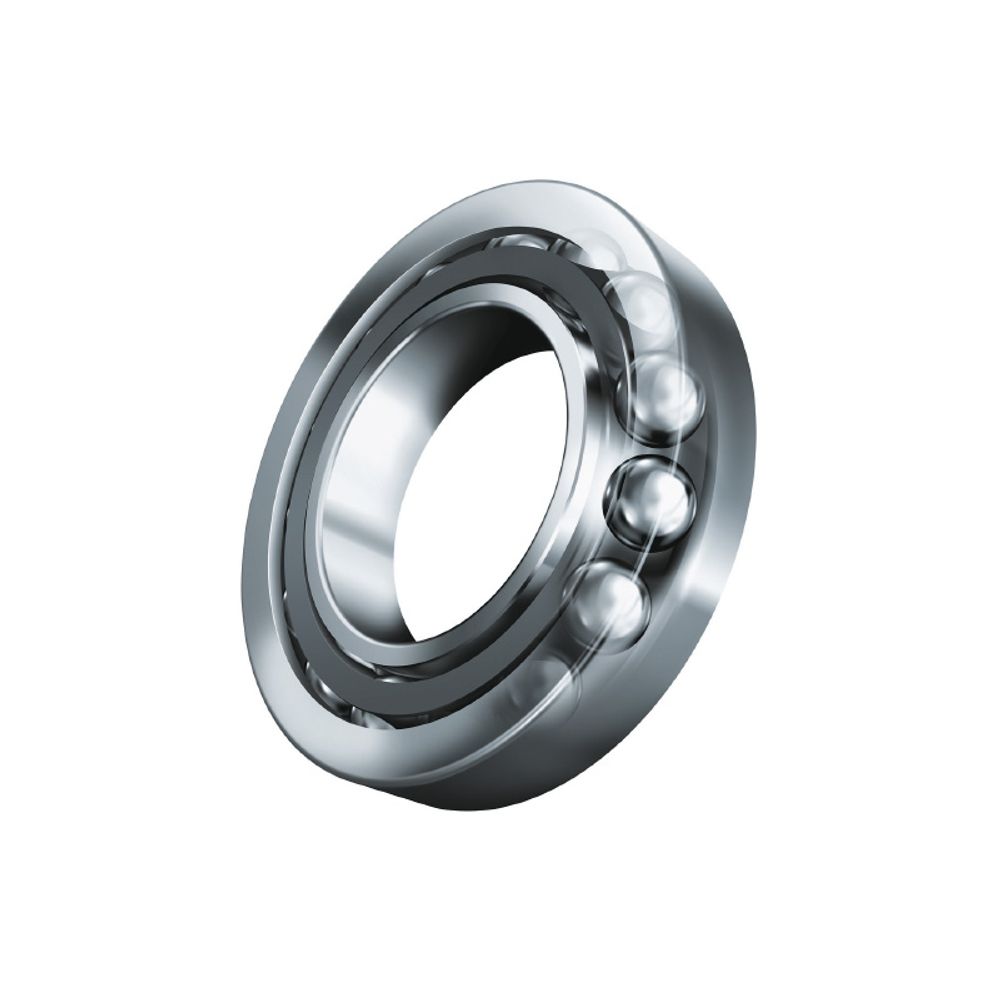

DescriptionThe UB-63801-B5 bearing is a thin section deep groove ball bearing designed for compact applications requiring higher strength than the 6801 series.The dimensions (12 x 21 x 7 mm) provide a balance between reduced size and increased load capacity due to its greater width.The 63801-2RS configuration with double seals protects against dust, dirt and moisture while retaining lubrication and extending service life.The deep groove design supports radial and light axial loads with smooth and stable operation.
SpecificationsType: thin section deep groove ball bearingModel: 63801 / 63801-2RSDimensions: 12 x 21 x 7 mmSeal: 2RS (double seal)Material: high strength chrome steelStructure: single row ballLoad: radial and light axialDynamic load rating approx 2.1 kNStatic load rating approx 1.0 kNMax speed approx 34000 rpm
CompatibilityCompatible with codes: 63801, 63801-2RS, 12x21x7Stronger alternative to 6801 seriesSuitable for compact applicationsApplications: electric motors, electronics, compact systemsIdeal replacement for thin section bearings
- Brand: Innteck
Key strengths63801 reinforced thin section bearingDimensions 12 x 21 x 7 mm2RS seals for protection against dust and contaminantsThicker profile than 6801 series for improved strengthGood load capacity with compact design
DescriptionThe UB-63801-B5 bearing is a thin section deep groove ball bearing designed for compact applications requiring higher strength than the 6801 series.The dimensions (12 x 21 x 7 mm) provide a balance between reduced size and increased load capacity due to its greater width.The 63801-2RS configuration with double seals protects against dust, dirt and moisture while retaining lubrication and extending service life.The deep groove design supports radial and light axial loads with smooth and stable operation.
SpecificationsType: thin section deep groove ball bearingModel: 63801 / 63801-2RSDimensions: 12 x 21 x 7 mmSeal: 2RS (double seal)Material: high strength chrome steelStructure: single row ballLoad: radial and light axialDynamic load rating approx 2.1 kNStatic load rating approx 1.0 kNMax speed approx 34000 rpm
CompatibilityCompatible with codes: 63801, 63801-2RS, 12x21x7Stronger alternative to 6801 seriesSuitable for compact applicationsApplications: electric motors, electronics, compact systemsIdeal replacement for thin section bearings
- Brand: Innteck
