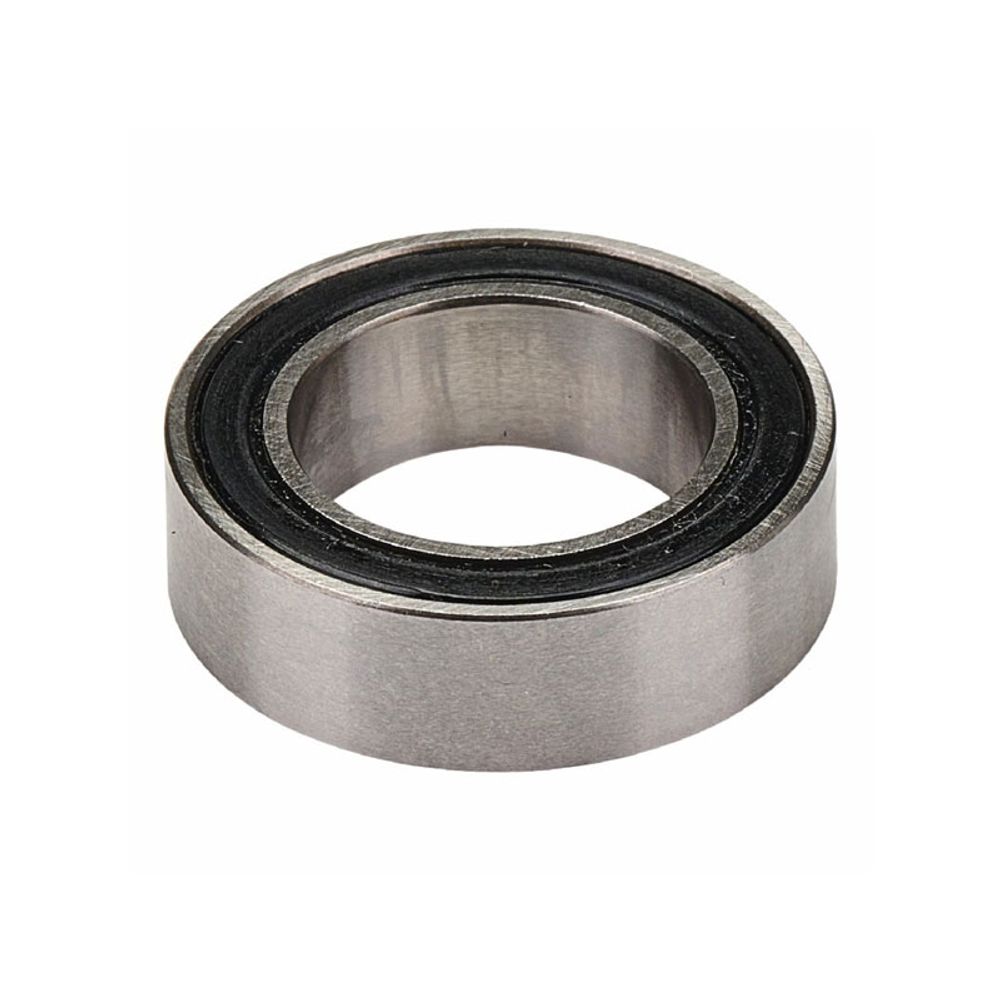

STANDARD BEARING MEASURE (15 x 24 x 7 mm) -- COD. ( 3802-2RS MAX - 15 24 7 - 15247 - 15x24x7 )

Key strengths3802 MAX double row angular contact bearingDimensions 15 x 24 x 7 mmSupports radial and axial loads in both directionsMAX design with increased ball count2RS seals for full protection DescriptionThe 3802-2RS MAX is a double row angular contact ball bearing designed to handle both radial and axial loads in both directions.Its double row construction works like a matched pair of single row bearings, providing higher rigidity and stability.The MAX design increases ball count, improving contact area and overall load capacity.The compact dimensions (15 x 24 x 7 mm) allow high performance in limited spaces.The double seals ensure protection against contaminants and long service life. SpecificationsType: double row angular contact ball bearingModel: 3802-2RS MAXDimensions: 15 x 24 x 7 mmSeal: 2RS (double seal)Structure: double row ball designMaterial: high strength steelLoad: radial + bidirectional axialDynamic load rating approx 2.0 – 2.1 kNStatic load rating approx 1.5 – 1.6 kNMax speed approx 14000 – 16000 rpm CompatibilityCompatible with codes: 3802, 3802-2RS, 3802-2RS MAXCompact alternative to paired bearingsIdeal for combined load applicationsApplications: motors, gearboxes, pumpsPerfect where rigidity and axial stability are required
