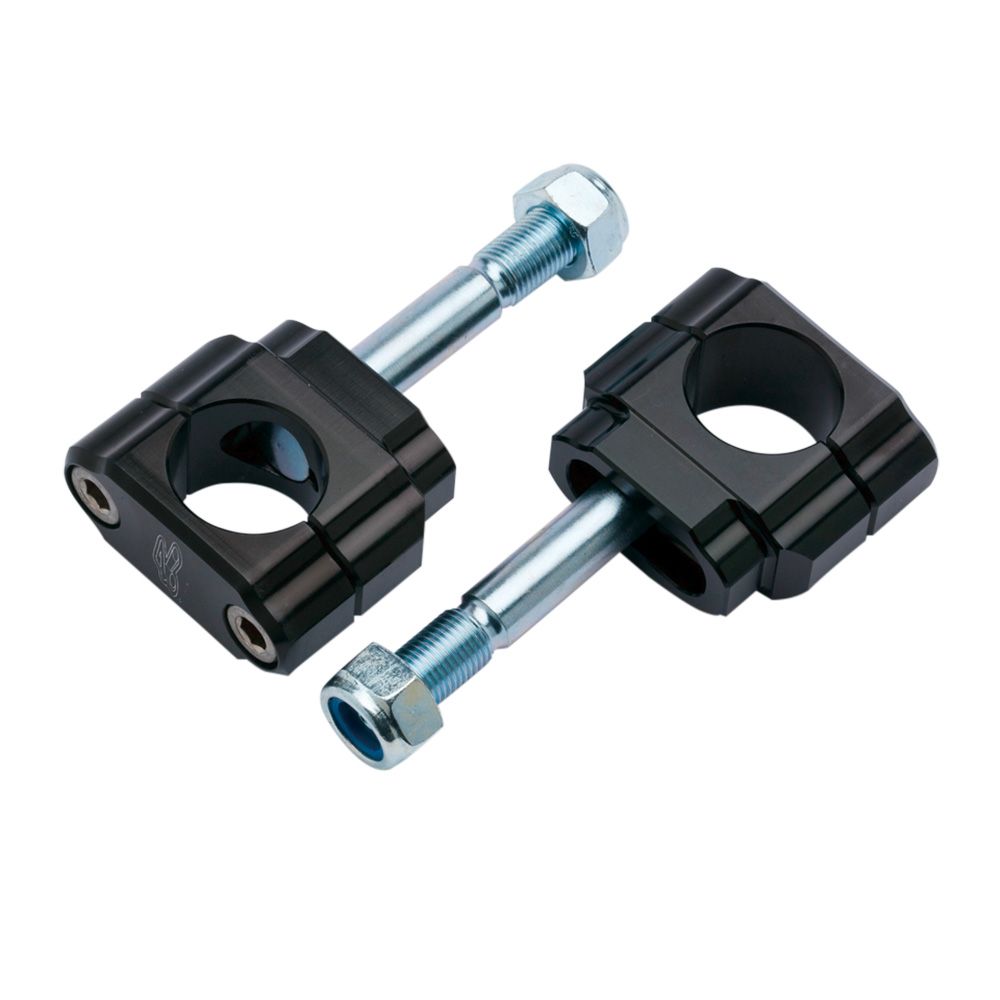

Bar Mount | D: 36mm | Suz 2008-22 Renthal

WELL-REFINED CLAMPS The handlebar clamping surfaces are accurately machined. This ensures a perfect fit between the handlebar and clamp which reduces possible movement. Available in different offsets and anodised to prevent corrosion. SPECIFIC BOLTS To minimize the chance of bolt failure, special attention has been paid to the design. The unique bolt head is designed with a part hemispherical seating blended into the shank. The bolt is plated and de-embrittled to resist corrosion. A stainless-steel spring dowel pin prevents rotation when tightening. CNC MACHINED Both the clamps and the bolts are carefully CNC machined at the Renthal Factory. Taking a billet of material our CNC machines using various tools machine away material leaving the final product ready for finishing. MATERIAL The clamps are CNC machined using a high strength 6082 T6 Aluminum alloy. The bolts are CNC machined from nickel chromium molybdenum 817M40 steel that is both hardened and tempered to grade 'W'. Corresponding to an ultimate tensile strength of 1075-1225 N/mm or 70-80 Ton/in.
