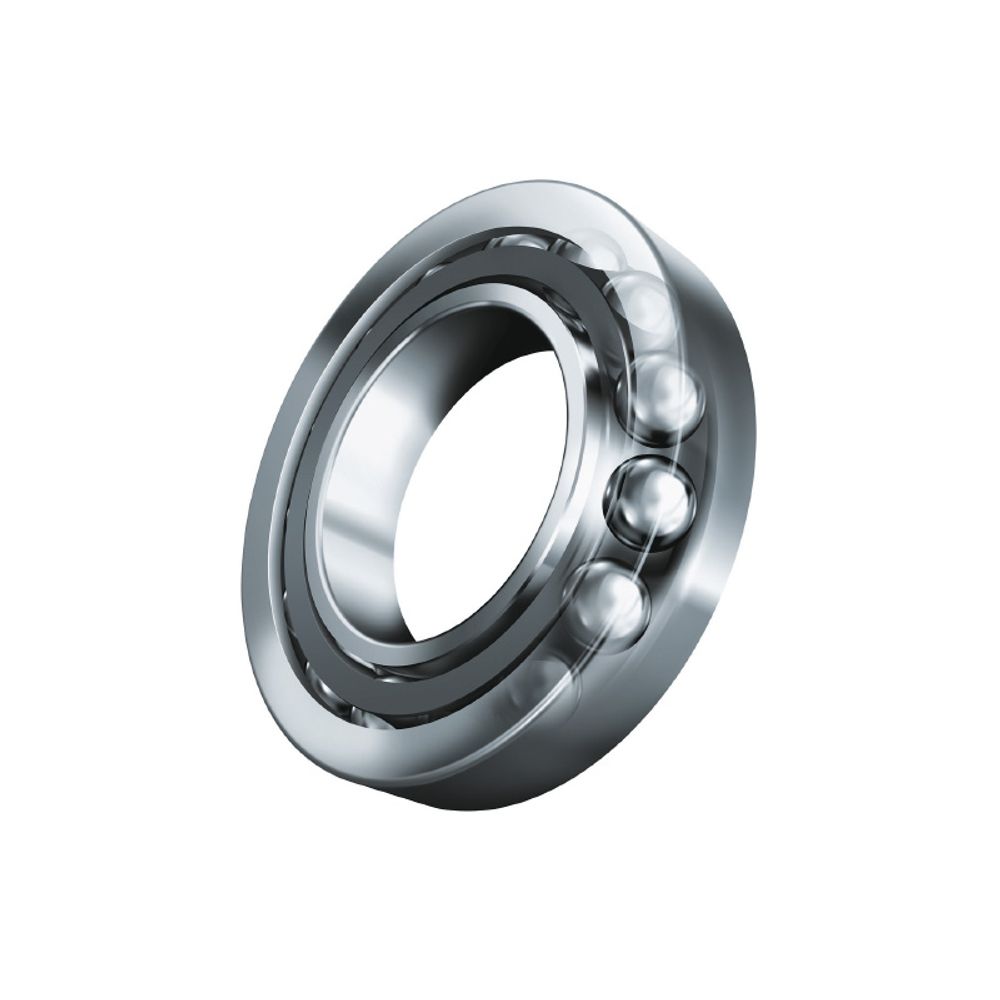

FB-6802-B3 - STANDARD BEARING MEASURE (15 x 24 / 26 x 5 / 7 mm) B3 6802-2RS/FE

Key featuresDeep groove ball bearing for radial loadsMAX version with increased ball count for higher load capacityDouble 2RS sealing for protection against contaminantsCompact design for limited space applicationsFlanged outer ring and extended inner ring configuration DescriptionBall bearing with dimensions 15 x 24 26 x 5 7 mm, based on 6802 platform with MAX configuration. This version includes a higher number of balls compared to standard design, increasing radial load capacity. The flanged outer ring and extended inner ring on both sides allow improved axial positioning. Double 2RS seals protect the bearing from dust and moisture while maintaining internal lubrication, ensuring smooth and reliable operation over time. SpecificationsType: deep groove ball bearingConfiguration: MAX increased ball countInner diameter: 15 mmOuter diameter: 24 26 mmWidth: 5 7 mmSeals: 2RS double lipMaterial: steelRaceways: groundLubrication: high performance greaseStructure: flanged outer ring and extended inner ringCode: 6802-2RS FE
