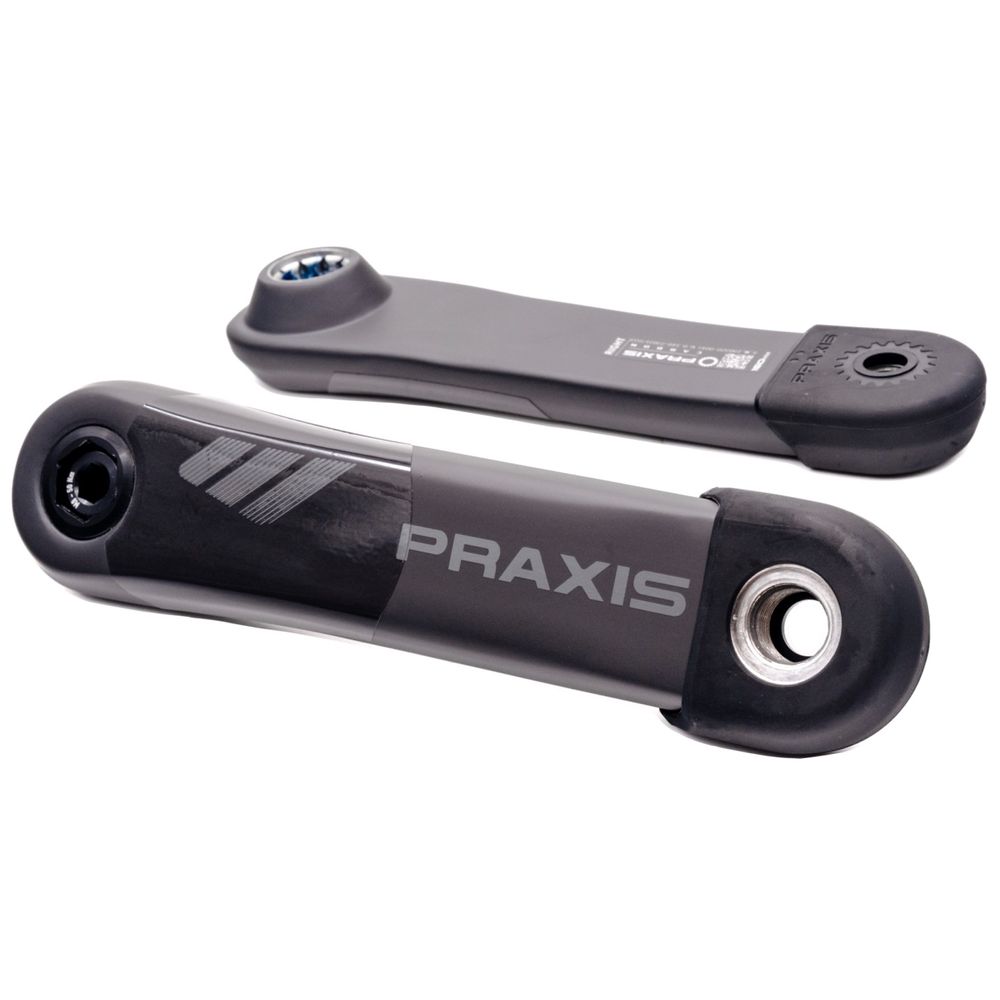

E-crank Brose/fazua-carb Isis/spline | 165 Mm Praxis

These eCranks MTN are best suited for eBikes with: - TQ-HPR50 & New HPR-60 - Specialised New Levo4 - Brose Mag Family - Fazua-R50 - SRAM Power Carrier - Bafang M800   SPECIFICATIONS BUY IT IF: You have an eMTB with a Brose Mag family, FazuaR50, TQ-HPR50 Bafang M800 or the new Specialised Levo4 motor MOTOR BROSE Mag Family - With steel ISIS spline spindle FAZUA-R50 - With steel ISIS spline spindle TQ-HPR50/HPR60 - With steel ISIS spline spindle Bafang M800 - With steel ISIS spline spindle Specialised Levo4 - With steel ISIS spline spindle MATERIAL Left & right arm set - Carbon fibre (with rubber boots) - Alloy REF. WEIGHT ALLOY = 520 g CARB = 460g Q factor These are the Q factors when installing this crank on these motors: Q 171mm : on the FazuaR50 motor Q 171mm : on the TQ-HRP50/HPR60 motor Q 172mm : on the Levo4 motor Q 183mm: on the Bafang 800 motor Q 186mm: on the Brose Mag motor Q 186mm: on the SRAM Powertrain motor MAIN BOLT 8mm AL main crank bolt for installation/self-extraction | tightening torque 50 N·m Our eCranks with ISIS spline use our replaceable M24 alloy main bolt. TECHNOLOGY C.R.A.F.T. Cabon Mfg. NOTE DO NOT order this crank if you have a Gen 1-3 Specialised Levo/Kenevo/Vomo/Vado.
