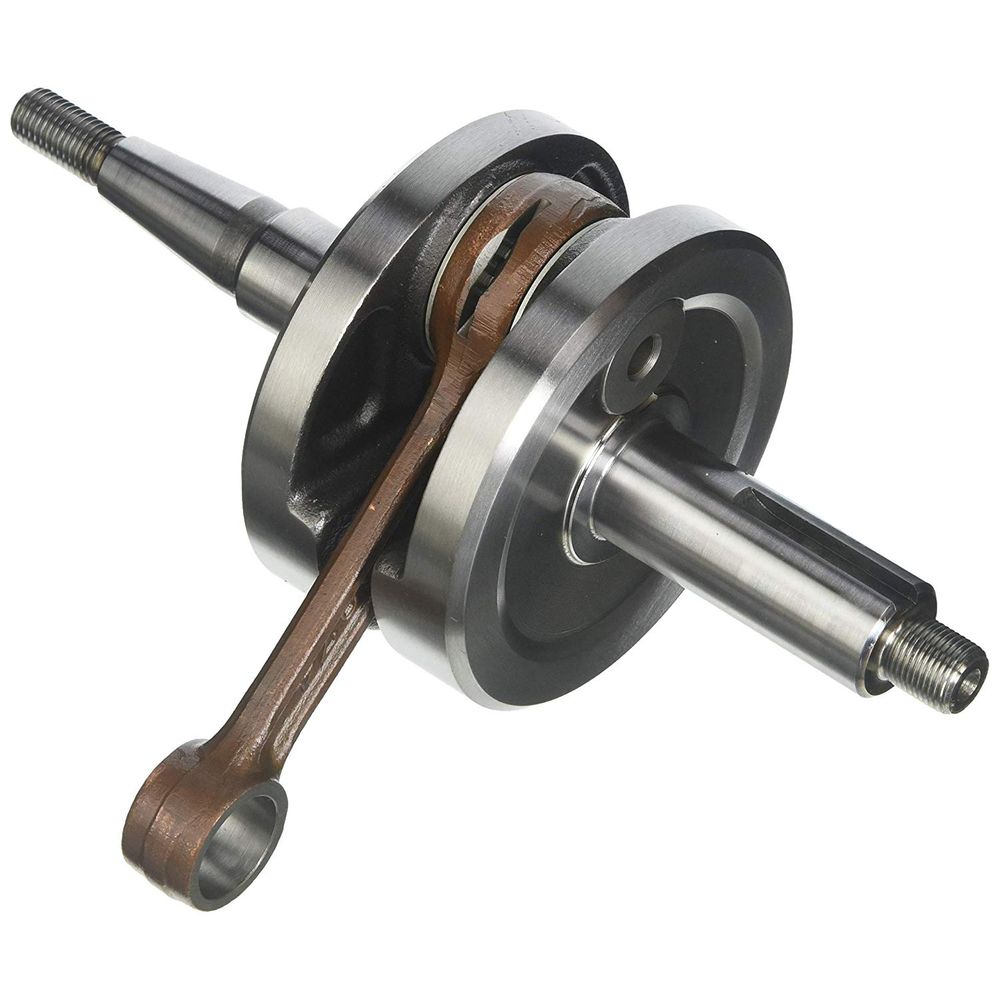

Crankshaft, Pin Ø 18 mm
(Tax included) Shipping calculated at checkout
Shipping within 2 days
Free Shipping on Orders Over €69,99
Secure Payment
Return within 14 days
Crankshaft, Pin Ø 18 mm
- Perfectly match the original
- High resistance to stresses
- Same or higher reliability compared to the original
Stroke (mm)
47.8
Center To Center (mm)
95.95
Shoulder Width (mm)
45
Small End Width (mm)
14
Crank Radius (mm)
23.9
Big End Width (mm)
14
Big End Bore (mm)
20
Washer Thickness (mm)
20
Pivot Pulley Length (mm)
52.5
Pivot Pulley Diameter (mm)
20
Piston Pin Diameter (mm)
18
Pivot Fly Wheel Diameter (mm)
20
Pivot Fly Wheel Length (mm)
61
Big End Bearing (mm)
20x26x13,8
- Perfectly match the original
- High resistance to stresses
- Same or higher reliability compared to the original
Stroke (mm)
47.8
Center To Center (mm)
95.95
Shoulder Width (mm)
45
Small End Width (mm)
14
Crank Radius (mm)
23.9
Big End Width (mm)
14
Big End Bore (mm)
20
Washer Thickness (mm)
20
Pivot Pulley Length (mm)
52.5
Pivot Pulley Diameter (mm)
20
Piston Pin Diameter (mm)
18
Pivot Fly Wheel Diameter (mm)
20
Pivot Fly Wheel Length (mm)
61
Big End Bearing (mm)
20x26x13,8
Choose options
